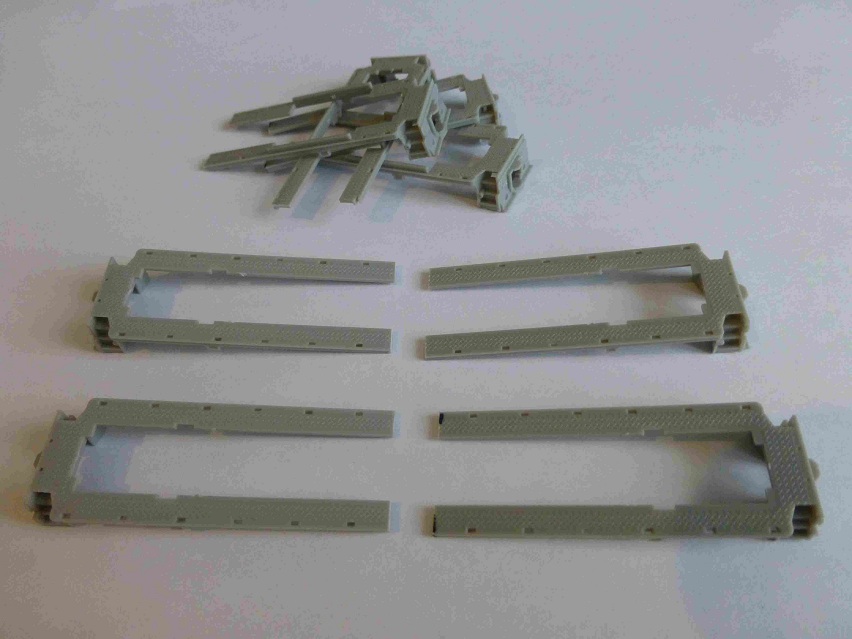

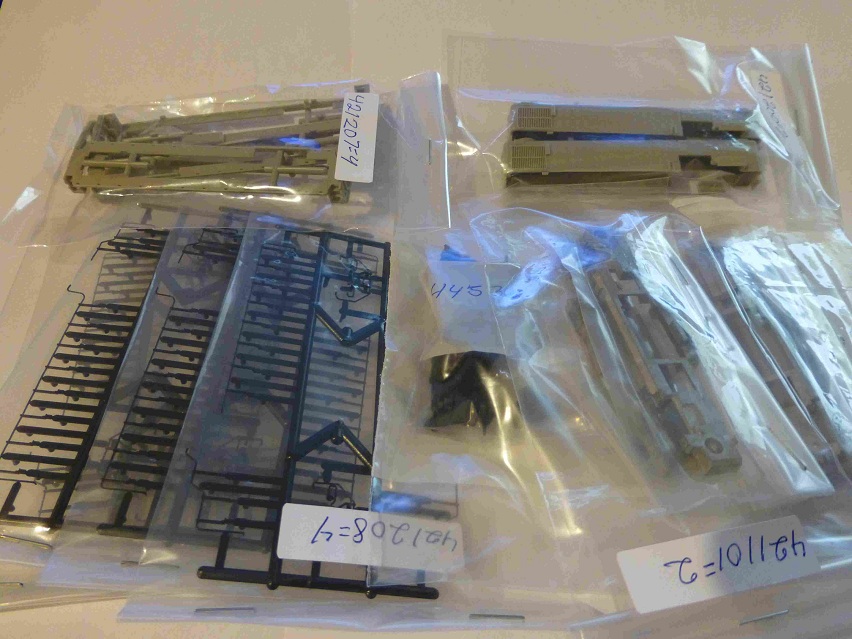

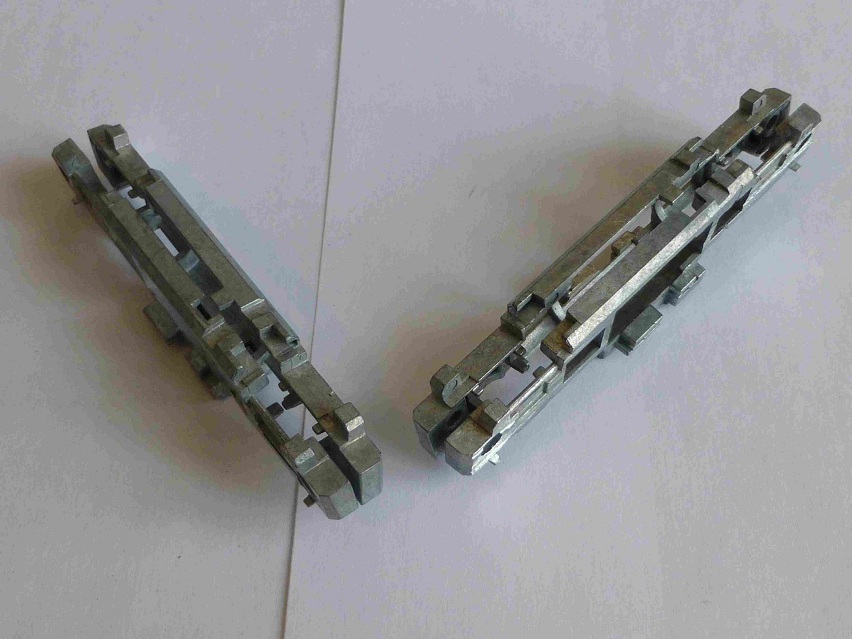

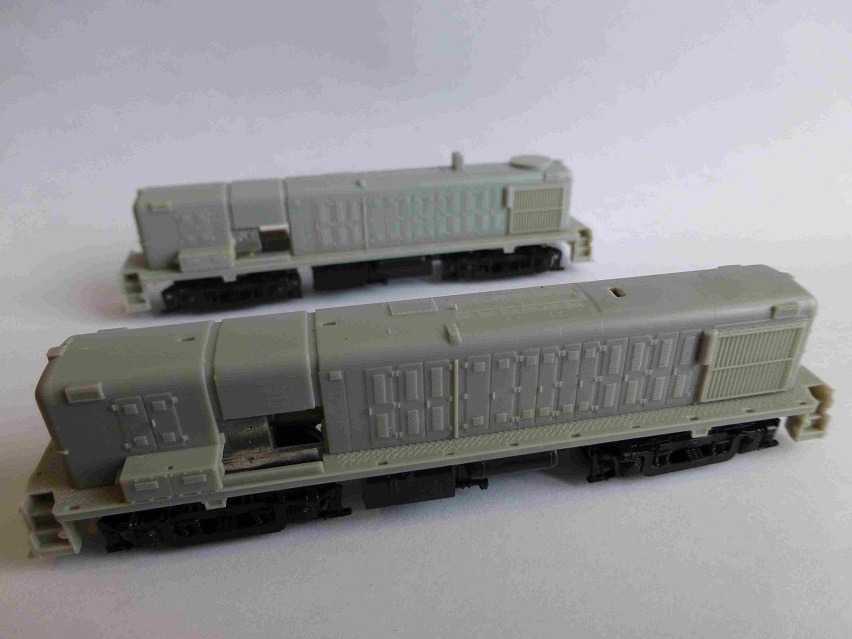

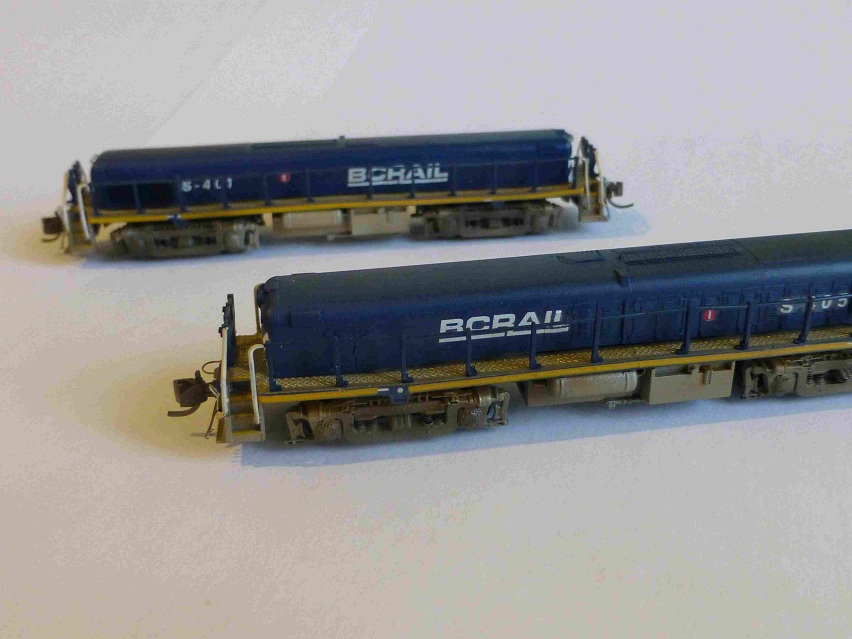

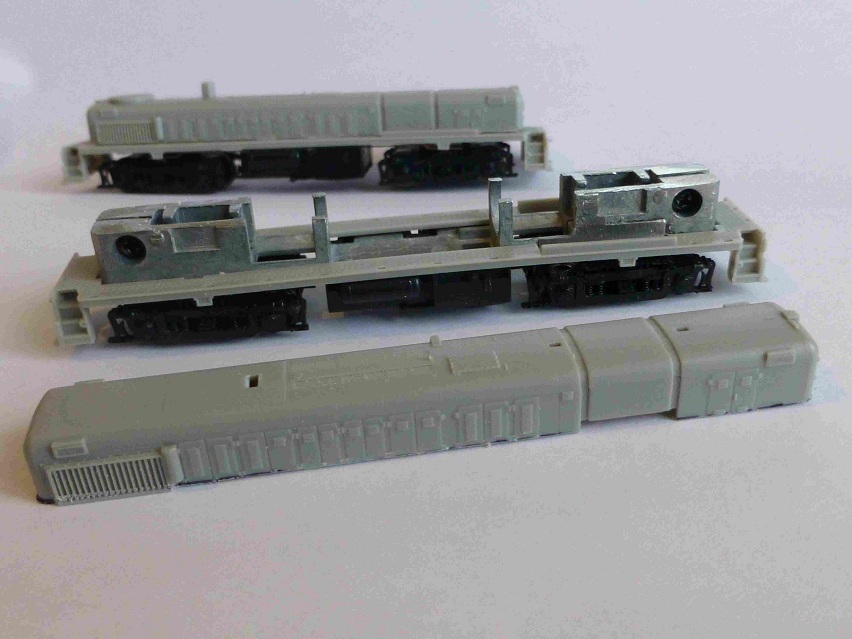

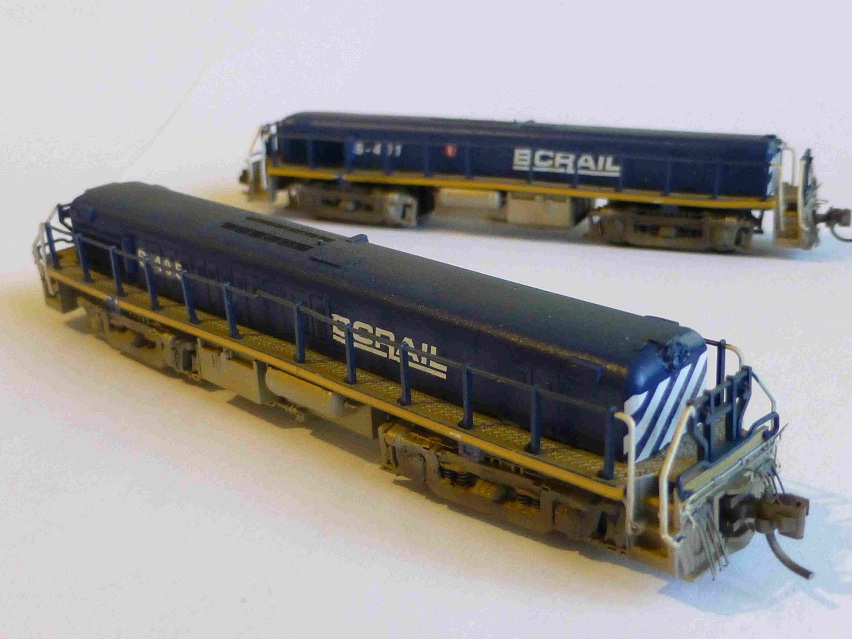

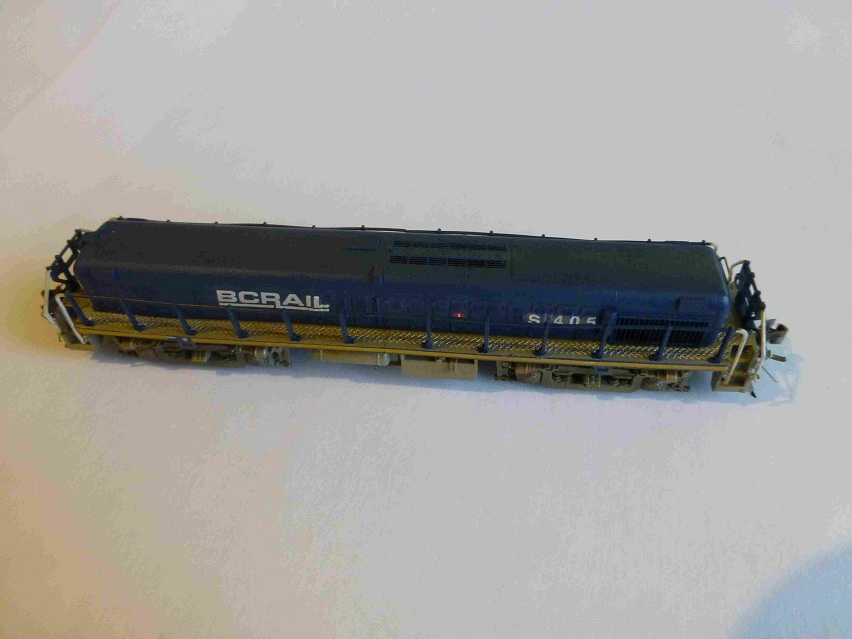

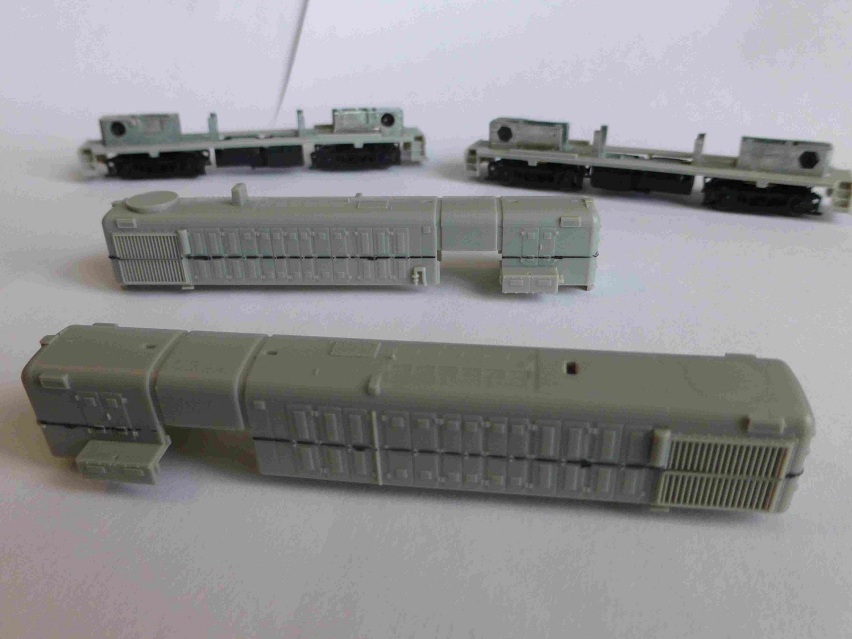

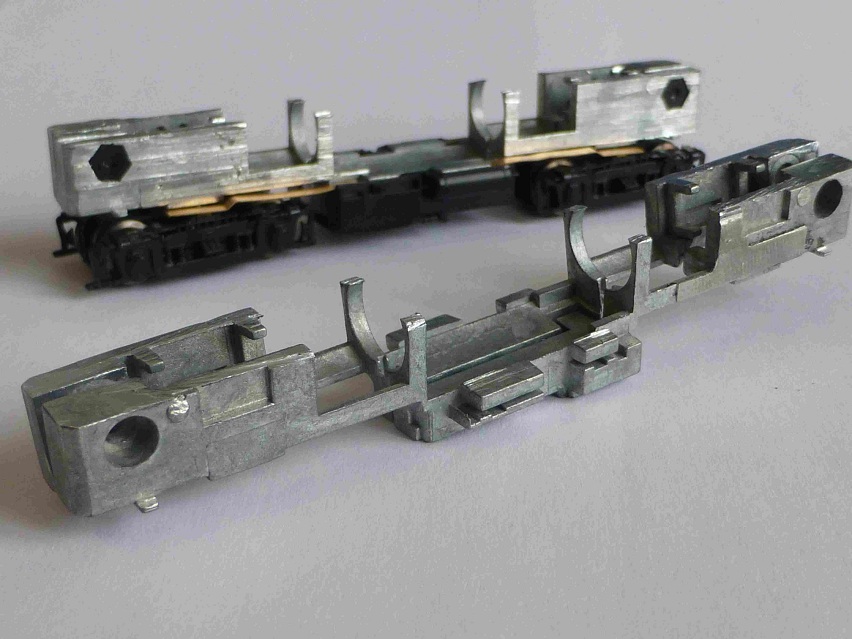

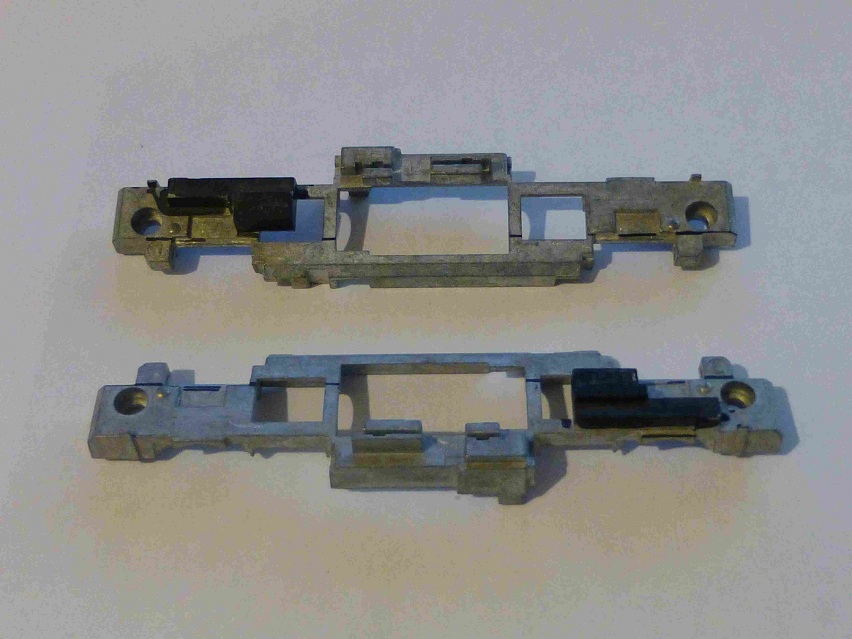

Screensize: 640 x 480 800 x 600 1024 x 768 1280 x 1024 UserName: Password: Format Mode: Basic  Help  Prompt  Format: Font Andale Mono Arial Arial Black Book Antiqua Century Gothic Comic Sans MS Courier New Georgia Impact Lucida Console Script MT Bold Stencil Tahoma Times New Roman Trebuchet MS Verdana   Size 1 2 3 4 5 6   Color Black Red Yellow Pink Green Orange Purple Blue Beige Brown Teal Navy Maroon LimeGreen Message: * HTML is OFF * Forum Code is ON Smilies [quote][i]Originally posted by suremann[/i] [br].... and some spare time Since a long time I was looking for a yard slug in N-Scale, but there was no kit available, nor a complete one. During my search in the internet, I found out, that none of the current yard slugs was ever built as a yard slug. All the current slugs were build as GP7/9 or RS-3 or whatever locomotives and later be rebuild into slugs. So the idea was born to build my own yard slug out of some GP9 debris and leftovers. After building two CN GP-9 yard slugs and the positive feedback I got for them, I decided to build two more, but this time a pair of BC-Rail RS-3 yard slugs and all comes with some progress pictures and a little how-to. Here is the part list I ordered at Atlas: 2x RS-3 mainframe – left 2x RS-3 mainframe – right 2x RS-3 body shell undec 4x RS-3 sill unit 4x RS-3 handrail set 2x RS-3 fuel tank 4x RSD-4/5 truck assembly 8x contact strip 4x hex nut 4x screw 4x insulating bushing Believe it or not, you get all that for just 69$! [img]http://www.sschaer.org/suremann/P1000460.JPG[/img] Modifying the frame: To get the look and feel of a yard slug, the original frame has to be modified and all the black marked parts has to be removed, especially for a RS-3 frame. I used a saw to remove them. If you decide to build a GP7/9 slug, than it is much easier, because there you don’t have to cut away these parts. [img]http://www.sschaer.org/suremann/P1000462.JPG[/img] [img]http://www.sschaer.org/suremann/P1000464.JPG[/img] Now I have to shorten the height of the frame. Again I used my good and old saw. As you can see in the picture, it has lot of room to install a decoder for lightning purpose if you like. This was the part which took me the most time; from now on the rest of the tasks are much easier. [img]http://www.sschaer.org/suremann/P1000471.JPG[/img] Test fit the body. I put the undecorated RS-3 body on the modified frame and marked the height, so that I have had an indication of how much I have to saw away from the body. And it will be wise, if you put some reserve in it. If you cut away too much, the body will not sit properly on the sill. Don’t ask why I know that [V]. [img]http://www.sschaer.org/suremann/P1000476.JPG[/img] [img]http://www.sschaer.org/suremann/P1000479.JPG[/img] After having the correct height of the body, I began to rasp down the smoke stack, fan and all unwanted parts. Than I used putty to fill all holes and gaps. [img]http://www.sschaer.org/suremann/P1000481.JPG[/img] More or less the last part in producing a yard slug is to build a sill without the spacing’s for the cab. That’s why I ordered 4 sills instead of only two. I marked the sill in the middle and used “the chopper” to cut the sill in halve. Then I glued the parts together. [img]http://www.sschaer.org/suremann/P1000485.JPG[/img] [img]http://www.sschaer.org/suremann/P1000487.JPG[/img] [img]http://www.sschaer.org/suremann/P1000488.JPG[/img] So, apply your favorite colors and decals and the yard slug is finished. [img]http://www.sschaer.org/suremann/P1000491.JPG[/img] [img]http://www.sschaer.org/suremann/P1000493.JPG[/img] [img]http://www.sschaer.org/suremann/P1000498.JPG[/img] Have fun, Markus [/quote]   Check here to include your profile signature.
